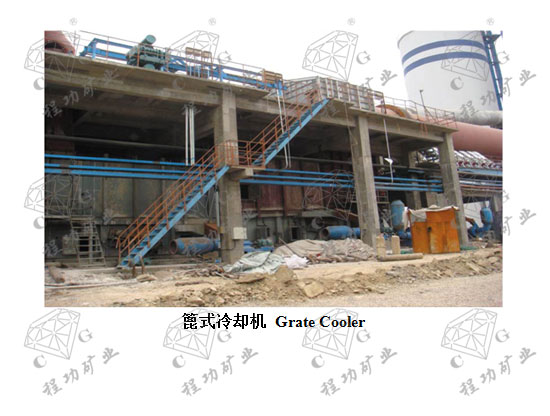

篦式冷卻機 Grate Cooler
篦式冷卻機是一種驟冷式冷卻機，篦式冷卻機原理是：用鼓風機吹冷風，將鋪在篦板上成層狀的孰料加以驟冷，使孰料溫度由1200℃驟降至100℃以下，冷卻的大量廢氣除入窯作二次風，還可以入煤磨作烘干熱源用。
Grate cooler is a cooler cooling down suddenly. Its working principle is: blow cool air with blower and cool down the stratified clinker on the grate, so that the clinker temperature drops from 1200℃ to lower than 100℃, the large quantity of cooled waster gas enters into the kiln as secondary air. It can also enter into the coal mill as drying heat source.
技術參數
| 規格型號 | 入料溫度 | 出料溫度 | 沖程次數 | 產量 | 配套設備 | 設備質量 | |
| 破碎機型號規格 | 拉鏈機型號規格 | ||||||
| ℃ | ℃ | r/min | t/d | t | |||
| 500T/D | 1350 | 60＋環境 | 5~15 | 500 | ф900×1690 | 250×1250 | 81.5 |
| 800T/D | 1350 | 60＋環境 | 5~15 | 800 | ф1200×2150 | 250×15500 | 128 |
| 1000T/D | 1350 | 60＋環境 | 5~15 | 1000 | ф1200×2150 | 250×15500 | 130 |
| 1500T/D | 1371 | 60＋環境 | 3~11 | 1500 | ф1000×2700 | 250×19660 | 145 |
| 2500T/D | 1371 | 60＋環境 | 2~12 | 2500 | ф1000×3000 | 250×26260 | 178.9 |
| 2800T/D | 1371 | 60＋環境 | 2~12 | 2800 | ф1000×3000 | 250×26260 | 192 |
| 5500T/D | 1371 | 60＋環境 | 5~25 | 5500 | ф1000×3300 | 400×37000 | 309 |
我們要求服務人員時刻關注客戶，及時解決設備問題，確保顧客的利益比一切都重要。
