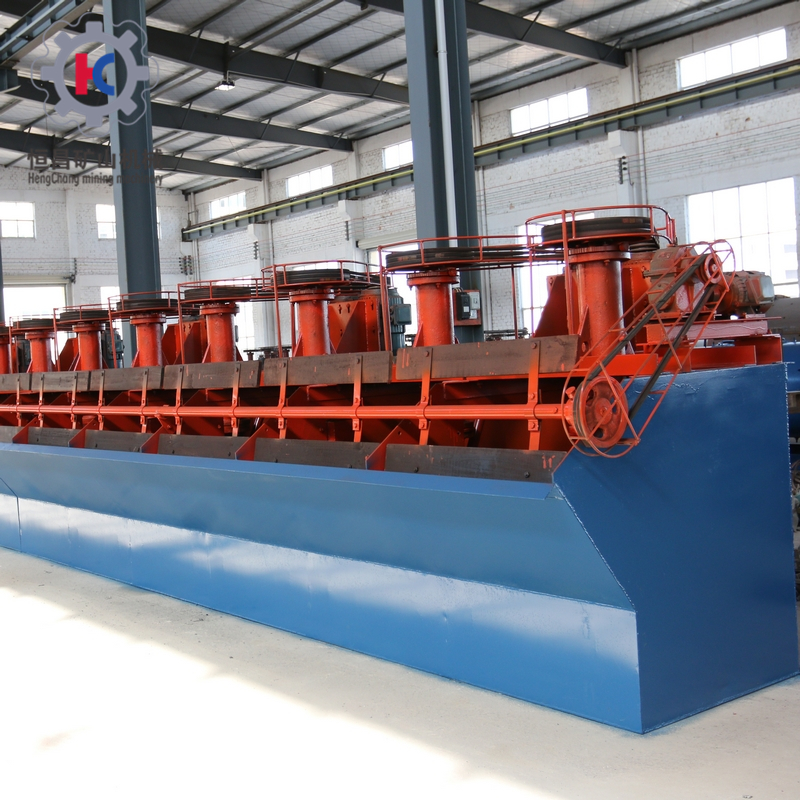

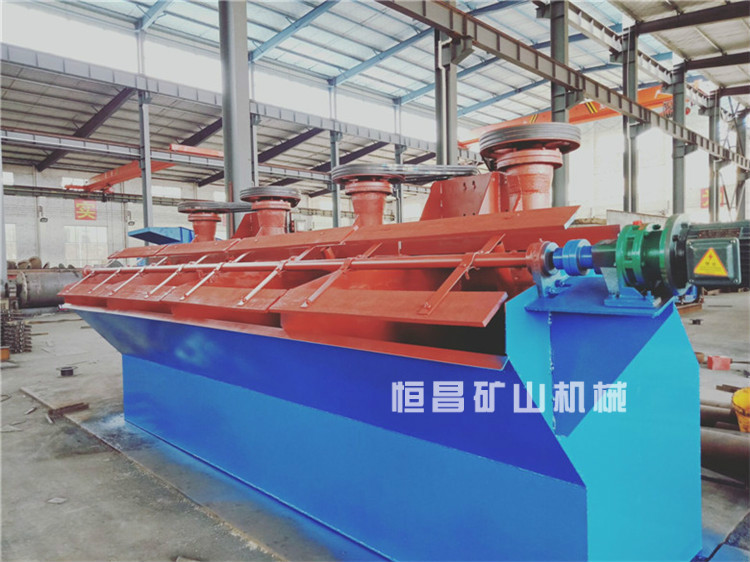

BS-K型充氣機械攪拌式浮選機
Mechanical
agitating aeration flotation machine
國家行業標準JB/T9038
BS-K型浮選機屬深槽型、充氣型浮選機，葉輪只起攪拌礦漿、循環礦漿和分散空氣的作用，因而易損件磨損較輕，其功率比其它類型浮選機較省。該機無自吸礦漿能力，需要階梯配置，作業中間產品返回需用泡沫泵。
Model-BS-K is a kind of deep tank lotation machine with aeration. Again, the impeller plays roles of agitating shurry, cycling slurry and distributing air. Therefore, the wearable parts suffer less waaring. It requires less power than the other models. This machine has no ability to pump slurry, thus bench arrangement is necessary, and foam pump is needed.
| 型號規格 Model | 容積 Volume | 槽體尺寸 cell size | 葉輪直徑 Impeller Dia. | 葉輪轉速 Impeller speed | 處理能力 capacity | 電機功率 power | 單槽質量 singe cell weight |
| m3 | mm | mm | r/min | m3/min | kw | kg | |
| BS-K1 | 1 | 1000×1000×1100 | 350 | 281 | 0.2-1 | 3/1.1 | 998 |
| BS-K2 | 2 | 1500×1500×1300 | 420 | 260 | 0.5-3 | 5.5/1.1 | 1480 |
| BS-K3 | 3 | 1600×1600×1400 | 500 | 230 | 0.5-3 | 7.5/1.1 | 2001 |
| BS-K4 | 4 | 1850×1850×1550 | 500 | 225 | 0.5-4 | 7.5/1.1 | 2200 |
| BS-K6 | 6 | 2100×2100×1680 | 650 | 197 | 1--6 | 18.5/1.1 | 3278 |
| BS-K8 | 8 | 2250×2250×1700 | 650 | 190 | 1--8 | 15/1.1 | 4832 |
| BS-K16 | 16 | 2950×2720×2380 | 750 | 165 | 2--16 | 30/1.1 | 8131 |
| BS-K24 | 24 | 3200×3200×2800 | 830 | 159 | 7--24 | 37/1.1 | 9820 |
| BS-K30 | 30 | 3500×3500×3025 | 880 | 151 | 7---30 | 37/1.1 | 11100 |
| BS-K38 | 38 | 3600×3600×3400 | 910 | 141 | 10-38 | 45/1.1 | 13820 |
我們要求服務人員時刻關注客戶，及時解決設備問題，確保顧客的利益比一切都重要。
