該浮選機用于地質、冶金、建材、化工、煤炭、礦山選廠及院校科研單位試驗室攪拌、分離、擦洗、精選礦樣等。本產品由原地礦部唯一指定企業生產，執行行業標準。

The flotation machines are employed for agitation , separation, scrubbing and cleaning of samples in labs of geological, metallurgical, building material, chemical, coal, beneficiation plant of mine , institutions of higher learning and research institutions. The product is produced by the only manufacturer designated by the former Ministry of Geology and Mineral Resources, in compliance with the Industrial standards.

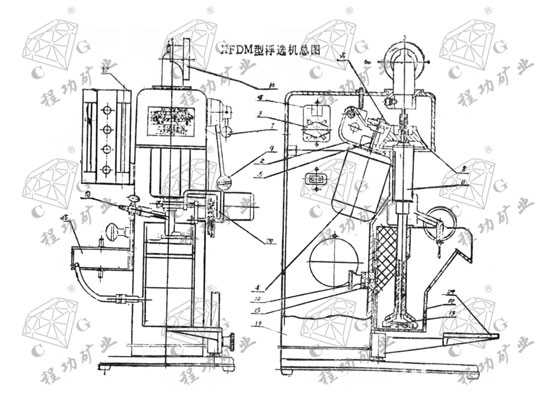

XFDM型多槽浮選機是選煤用實驗型標準浮選機，也適用于冶金、地質、煤炭、建材、化工、環保等行業。用于攪拌、擦洗、分離和精選少量礦樣等。

XFDM型多槽浮選機葉輪轉速、充氣量、刮板方式和次數均屬可調，槽體容積可更換。定壓補水槽補加清水，水位高度調節靈活方便，如果與數字式時間程序分配器配套使用，能顯示和控制各浮選工序和時間，精確方便，可實現浮選試驗操作部分自動化，因而試驗精度較高，試驗結果的重現性較好，是進行可浮性研究和試驗較理想的設備。

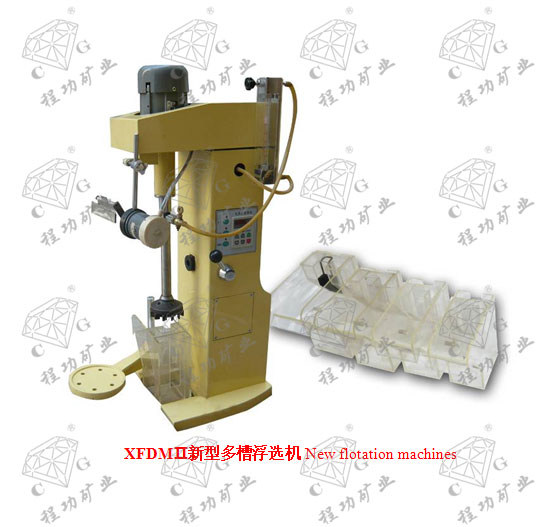

XFDMⅡ型多槽浮選機是XFDM型更新?lián)Q代產品。它采用變頻技術，葉輪無級調速，數碼顯示，調整精確。還裝有加熱器、溫度控制儀，隨時顯示槽內礦液溫度。本機還配有液面自動調節補加水等裝置，可實現較高自動化水平。

XFDM Model Multi-cell Flotation Machine is an experimental standard flotation machine for coal dressing and is also suitable to applied in metallurgical, geological, coal, building material, chemical, environmental protection and other industries for agitating, scrubbing, separating and cleaning minor samples.

XFDMⅡ Model Multi-cell Flotation Machine is a updated product of XFGC Model Multi-cell Flotation Machine, adopting frequency conversion technology, stepless speed governing of impeller and digital display with accurate adjustment and reliable operation. XFDMⅡ Model Multi-cell Flotation Machine uses the external aeration device with adjustment of aeration, accuracy and reliability.

型號規格 Model	選槽容積 Volume	葉輪直徑 Impeller  diameter	葉輪轉速 Impeller speed	給礦粒度 Feed size	刮板轉速 Scraper speed	功率 power	質量 Weight
	L	mm	r/min	mm	r/min	w	kg
XFDM	0.75、1、 1.5、2.5	Φ45 Φ60	≤2800	≤0.5	30	180	33
XFDMⅡ	0.75、1、 1.5、2.5	Φ45 Φ60	≤2600	≤0.5	30、20	180	40

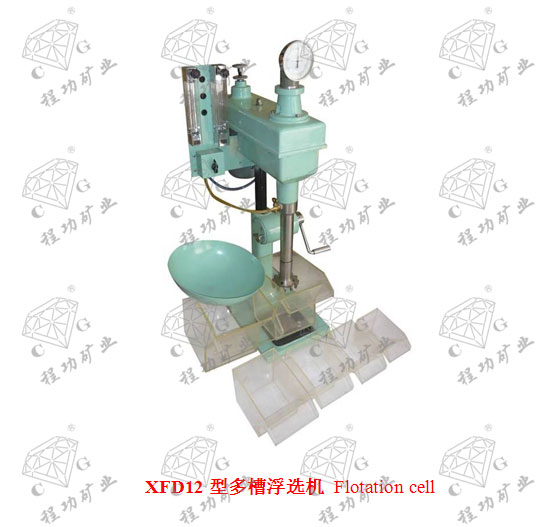

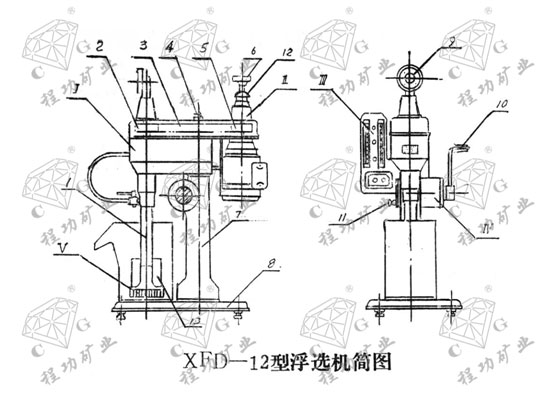

XFD12型多槽浮選機Multi-cell Flotation Machine

XFD12型多槽浮選機是丹佛式機型適用于冶金、地質、煤炭、建材、化工、環保等行業。用于攪拌、擦洗、分離和精選少量礦樣等；可用來進行125 -3000克浮選試樣的浮選試驗。

XFD12 Model Multi-cell Flotation Machine is of Denver Type and suitable to be used in metallurgical, geological, coal, building material, chemical, environmental protection and other industries for agitating, scrubbing, separating and cleaning minor samples.
