本企業正常規格的多層式振篩機，其使用的材料在機身與原料接觸的部位均使用不銹鋼SUS27(#304)，機座則使用鋼材S.S.41。

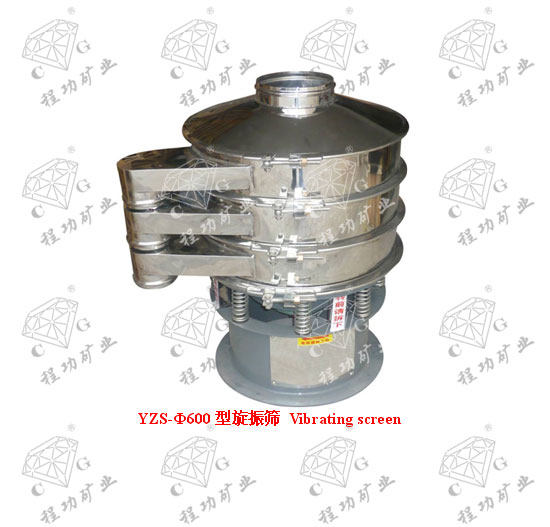

For the multi-layer vibrating screen of usual specifications manufactured by our company, the contacting parts of its body and raw materials are all made of stainless steel SUS27(#304); and the its base is made of S.S.41.

一、工作原理

I. Working Principle

采用最新式立式振動電機，由該電機產生水平、垂直、傾斜的三次元振動,再把這種振動直接傳遞給篩面。

It adopts the newest vertical vibrating motor which generates horizontal, vertical and oblique vibration. Such vibration is then transmitted directly to the sifter.

改變電機上、下偏振子的空間相位角，產生不同的激振力而改變物料的運動方向。

When the phase angle between the upper polariton and the lower polariton of motor, different excitation force is produced and then the movement direction of materials is changed.

下面表述振子調整的一般特征：

General features of polariton adjustment

原料流動方向 Flow Direction of Material	重心夾角 Included Angle	特色效果Effect	主要用途Main Purpose
	5º	原料系由中心直線流向圓周方向 Materials flow from the center to the edge of circle in straight lines	概略分級：將易于篩分的原料作大量分級，粗粒的篩分 Rough screening: Classify plenty of materials that are easily screened and sieve coarse grains
	15º	開始旋渦運動 Materials start their vortical movement	用于一般篩分 General screening
	85º	最長的旋渦運動 Materials make longest vortical movement	精密分級，用于微分高凝聚性及高含水率之原料分級 Precise screening: Precisely sieve the raw materials with high cohesiveness and high moisture content
	100º	原料向中央集中 Materials moves to the center	特殊用途 For special purpose

二、技術參數

三、適用范圍

III. Applicable Scope

1、化工行業：樹脂粉、顏料、洗衣粉、微粉、油漆、純堿、檸檬酸等；

1. Chemical industry: Resin powder, pigment, washing powder, micropowder, paint, soda ash, citric acid, etc

2、磨料、陶瓷行業：氧化鋁、石英砂、泥漿、噴霧土粒等；

2. Abrasive and ceramic industry: Aluminum oxide, quartz sand, slurry, spraying oil particle

3、食品行業：糖、鹽、堿、味精、奶粉、豆漿、酵母、果汁、醬油、醋等；

3. Food industry: Sugar, salt, alkali, monosodium glutamate, milk powder, soya-bean milk, yeast, fruit juice, soy sauce, vinegar, etc

4、造紙行業：涂布涂料、白土泥漿、黑白液、廢液、造紙液、廢水回收等；

4. Papermaking industry: Recycle of coating, coated slurry, white and black liquid, waste liquid, papermaking liquid, waste water, etc

5、冶金行業：氧化鈦、氧化鋅、電磁材料、金屬粉末、焊條粉末等；

5. Metallurgy industry: Titanium oxide, zinc oxide, electromagnetism material, metal powder, welding rod powder, etc

6、制藥行業：中藥粉、中藥液、西藥液、西藥液體、中西藥顆粒等；

6. Pharmaceutical industry: Traditional Chinese medicine powder, liquid of traditional Chinese medicine, soup of western medicine, liquid of western medicine, granules of traditional Chinese medicine and western medicine, etc

7、環境保護：垃圾、人畜屎尿、廢油、食品廢水、廢水加工等

7. Environmental protection industry: Processing of rubbish, human and animal excreta, waste oil, food wastewater, wastewater, etc
