XH型三維混料機是針對攪拌，翻轉型混料機械普遍存在的混料不均，混料有死角，混料時間長等問題精心設計制造的一種先進的混料設備。被混物料無論比重差別，和配比調整都能在混料筒中形成三維空間的旋轉及左右，上下運動，其激烈的復合拋物力，迫使物料全部處在運動中并快速混合，得到既分散，又均勻的混合物料。

XH Three-dimensional mixing machine is a type of advanced mixing equipment designed and manufactured to solve the problems commonly existing in stirring and turning mixing machines including: The mixing is uneven; there is dead end of mixing; and it takes long for mixing. No matter what the density and proportion are, the mixed materials can, in the mixing cylinder, rotate three-dimensionally as well move left, right, up and down. Its large compound parabolic force forces all the materials to move and mix rapidly, producing dispersed but even mixing materials.

1、本設備目前在混料機械中屬最新品種，******技術。

1. This equipment is of the newest type among all kinds of mixing machines. Besides, it employs the most advanced technology.

2、節能，混料效果好，工作效率高。同其他類型混料機比較，其他混料機需60-80分鐘才能達到的混料效果，本設備5-7分鐘即可實現。

2. This equipment saves energy, produces good mixing effects, and works with high efficiency. It takes this equipment only 5 to 7 minutes to achieve mixing effects that can be attained by other types of mixing machines after 60 to 80 minutes of work.

3、方便，本機混料筒為可拆卸式，設備在混料工作期間，工作人員可將混料筒進行裝料，配料，進行輪換混料。

3. This equipment is easy to use. The mixing cylinder of this equipment can be dismounted. When the equipment is mixing materials, the operator can at the same time feed materials to the mixing cylinder, as well as prepare and mix materials alternately.

4、優良，采用優質材料精心制作的零部件，旋轉部位全部采用精密軸承，確保了各部件運轉靈活和整機性能穩定，并且經久耐用。

4. The parts of this equipment are made of high-quality materials. Its rotating parts are all precision bearings which ensure flexible operation of all parts and stable performance of the complete machine. Besides, they are durable.

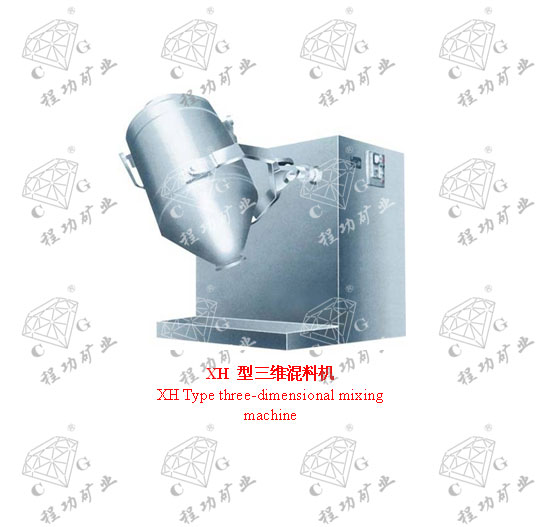

XH型三維混料機XH Type three-dimensional mixing machine
型號規格Model	單位 Uite	數 值
		XH- Ⅰ 型	XH- Ⅱ 型	XH- Ⅲ 型
混料粒度 Mixing size	mm	＜1	＜1	＜1
料筒容積Volume	L	2	7	70
混料能力 Capacity	L/h	10	50	300
外形尺寸Overall ding	mm	450×600×440	630×700×750	1200×1150×1170
重 量  Weight	kg	30	200	1200
